Emergency Sunshade Canopies Wholesale: 3 Types for Disaster Relief and Outdoor Shade

Emergency sunshade canopies are lightweight tarps that create temporary shaded areas using ropes, poles or existing support points. Unlike frame tents or inflatable tents, they fold flat, weigh under 3kg each, and can be set up by two people in minutes. We supply three material types — aluminum foil reflective, PE woven, and polyester reinforced — in sizes from 2×3m to 4×6m, suitable for emergency distribution points, field hospitals, refugee camps and outdoor duty stations.

All canopies are manufactured in China with UV-stabilised materials. Standard sizes are available from our regular production schedule; custom colours, logos and reinforced edges can be arranged for institutional orders. We can help arrange third-party test reports based on your project requirements.

Related Emergency Shelter and Shade Products

Browse related shelter and shade products for a full emergency setup.

Pick from three material types built for different heat levels and use cases. Start with your scenario, then review the full specifications below.

• Extreme heat / desert climate? → Aluminum foil reflective canopy (reflects 90%+ UV, lowers temperature by up to 15°C).
• General-purpose shade / rain protection? → PE woven canopy (waterproof, durable, lowest cost).

• Frequent setup / relocation / repeated use? → Polyester reinforced canopy (UPF 50+, carry bag, ropes and pegs included).
• Cover a 4-person table? → 3×3m canopy.
• Cover a 6-8 person distribution point? → 3×4m or 4×6m canopy.
• Vehicle emergency kit? → 2×3m aluminum foil or polyester compact canopy.

Three Sunshade Canopy Types Compared

✅ Browse our Emergency Sunshade Canopies Wholesale: 3 Types for Disaster Relief and Outdoor Shade, source sturdy emergency sunshade canopies and disaster relief shade shelters for temporary field camps and emergency outdoor shading bulk orders.

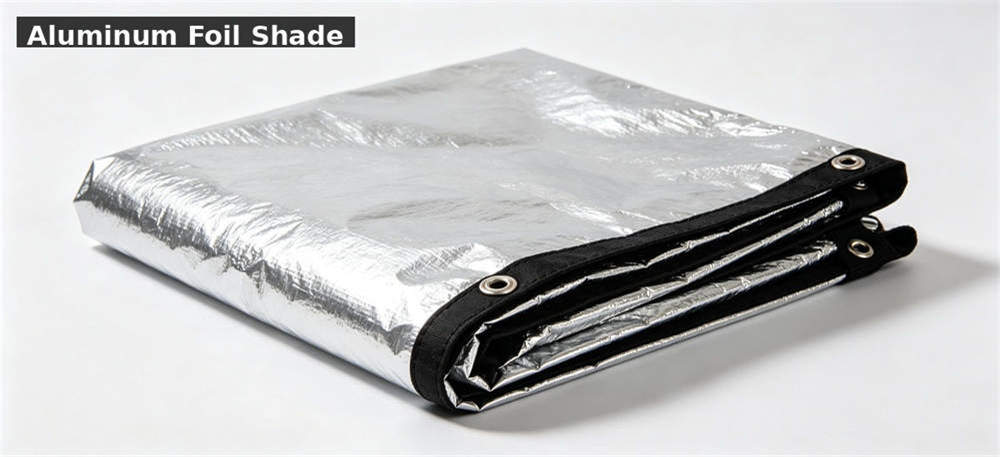

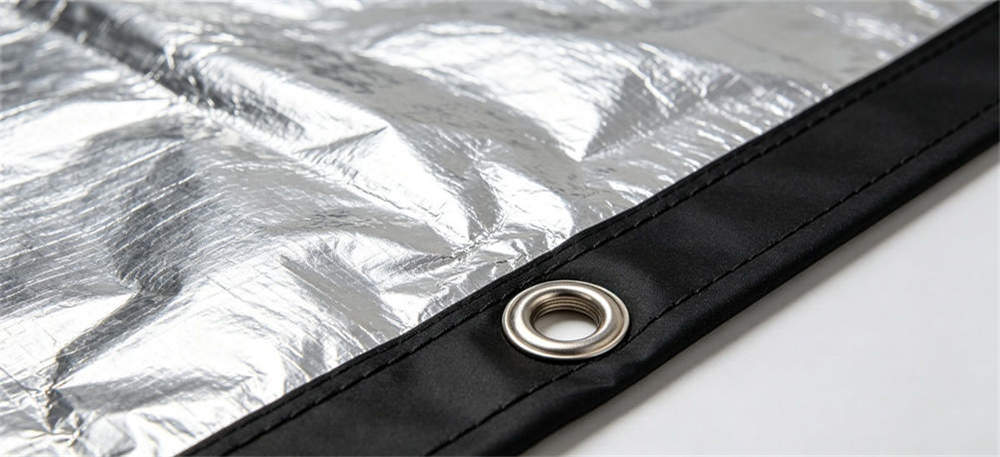

Aluminum Foil Reflective Sunshade Canopy

The aluminum foil model uses a PE film laminated with a reflective aluminum foil surface. It reflects sunlight rather than absorbing it, making it the coolest option for extreme heat. The foil side faces outward; the reverse side is typically orange or green for high visibility. Folds to a compact package smaller than a laptop.

2×3m Compact Size

The 2×3m size covers one person or a small equipment station. Folded dimensions approximately 30×20×3cm, weight 0.5-0.8kg. Ideal for vehicle emergency kits, individual duty posts and backpack carry. Four corner tie points with reinforced stitching. Can be strung between two vehicles or tied to existing structures.

Specifications: 2×3m, PE+aluminum foil, 120-140gsm, weight 0.5-0.8kg, folded 30×20×3cm, 4 corner ties, orange/silver or green/silver.

3×4m Standard Size

The 3×4m size covers a 4-6 person table or a small distribution point. Weight 0.8-1.2kg. Folded dimensions approximately 35×25×4cm. Six reinforced tie points (4 corners + 2 mid-edge). Suitable for field first-aid stations, registration points and small camp kitchens. The reflective surface can reduce under-canopy temperature by up to 15°C compared to direct sun.

Specifications: 3×4m, PE+aluminum foil, 120-140gsm, weight 0.8-1.2kg, folded 35×25×4cm, 6 tie points, orange/silver or green/silver.

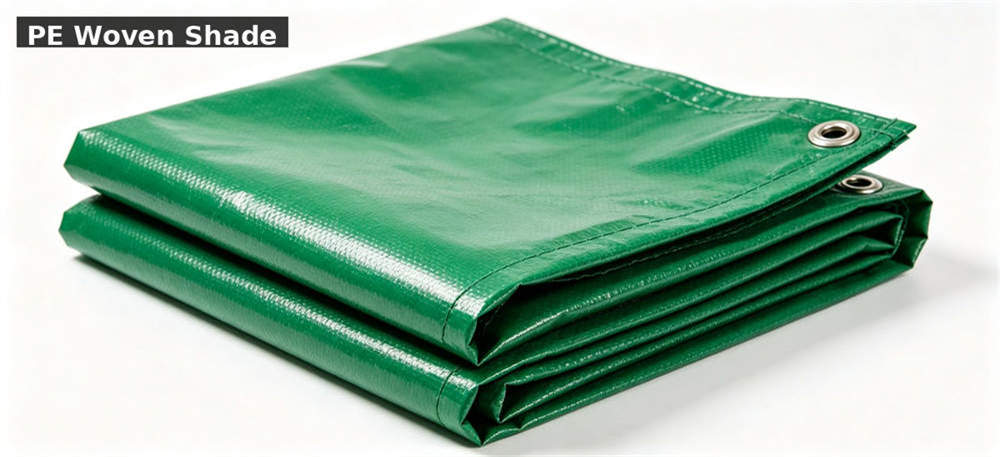

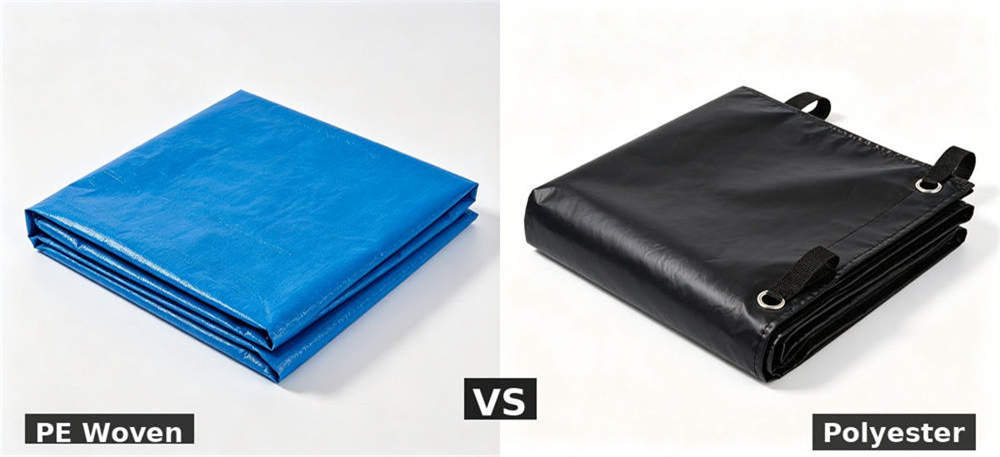

PE Woven Sunshade Canopy

The PE woven model is the most economical and durable general-purpose shade. Made from high-density polyethylene (HDPE) woven fabric laminated with low-density polyethylene (LDPE) on both sides. UV-stabilised for outdoor use. Waterproof and tear-resistant. Available in the widest range of sizes and colours. This is the standard choice for bulk humanitarian distribution and general-purpose shade.

3×3m Square Size

The 3×3m square is the most common size for a 4-person table or small work area. Weight 1.5-2.0kg. Metal eyelets every 1 metre along all four edges, plus reinforced corners. Can be set up as a single-slope or four-corner canopy. Colours: blue, green, orange, white, silver.

Specifications: 3×3m, HDPE woven + LDPE laminate, 160-200gsm, weight 1.5-2.0kg, eyelets every 1m, UV stabilised, waterproof.

4×6m Large Size

The 4×6m size covers a 10-15 person area, suitable for distribution centres, camp gathering areas or equipment storage. Weight 3.5-4.5kg. Reinforced edges with 6mm polypropylene rope hemmed inside. Metal eyelets every 1 metre. This size requires 4-6 support points and is best set up with poles or between existing structures.

Specifications: 4×6m, HDPE woven + LDPE laminate, 180-220gsm, weight 3.5-4.5kg, rope-reinforced edges, eyelets every 1m, UV stabilised.

Polyester Reinforced Portable Sunshade

The polyester reinforced model uses 210D polyester oxford fabric with a silver or black UV-blocking coating. UPF 50+ rating blocks 98% of UV rays. Heavier construction with webbing-reinforced corners and multiple tie loops. Comes as a complete set with carry bag, 4 nylon ropes and 4 steel pegs. Designed for repeated setup and relocation by field teams.

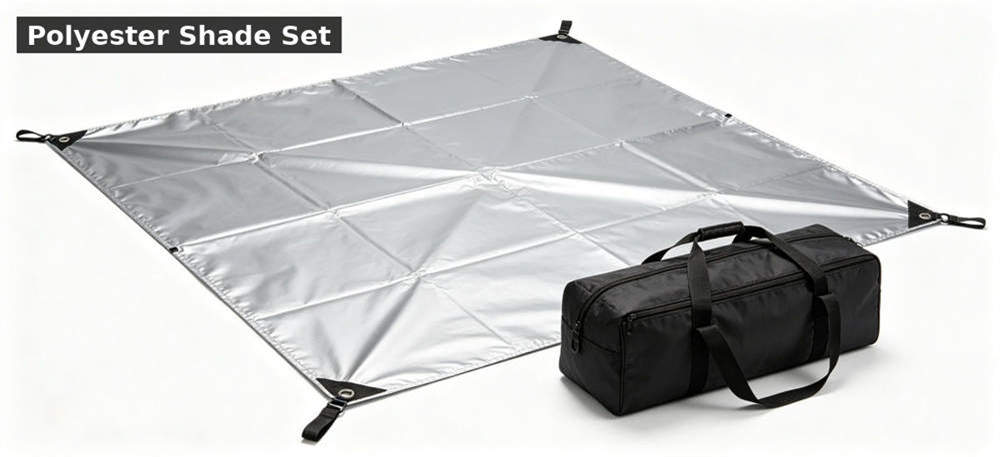

3×3m Portable Set

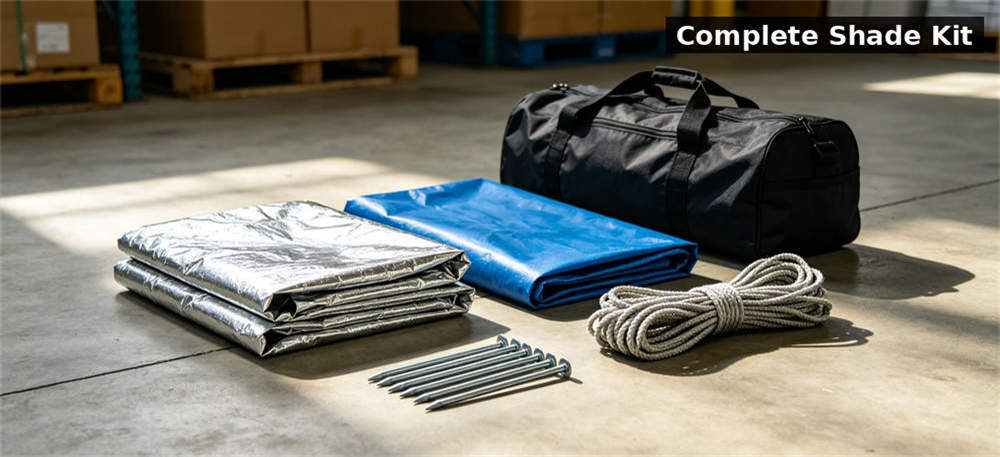

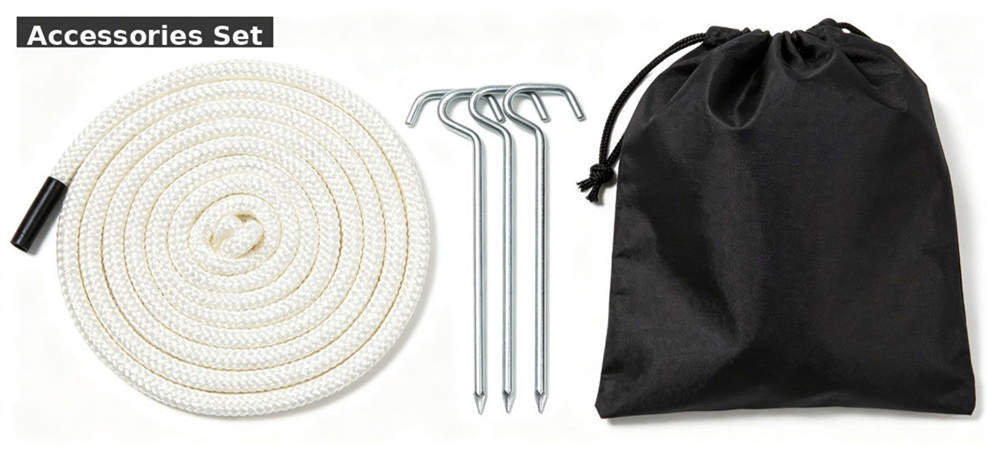

Complete set includes canopy, carry bag, 4×3m nylon ropes and 4×18cm steel pegs. Weight 2.0-2.5kg. Folded in carry bag: 40×15×15cm. Six webbing tie loops (4 corners + 2 sides). Silver coating reflects heat; black coating option for maximum opacity. Suitable for mobile clinics, survey teams and emergency response units that relocate frequently.

Specifications: 3×3m, 210D polyester oxford, silver or black coating, UPF 50+, weight 2.0-2.5kg, 6 webbing loops, carry bag + 4 ropes + 4 pegs.

3×4.5m Rectangular Set

The rectangular size covers a 6-8 person work area. Weight 2.5-3.0kg. Eight webbing tie loops for flexible setup. Same complete kit as the 3×3m with longer ropes (4m each). The rectangular shape works well over standard folding tables and distribution counters.

Specifications: 3×4.5m, 210D polyester oxford, silver or black coating, UPF 50+, weight 2.5-3.0kg, 8 webbing loops, carry bag + 4×4m ropes + 4 pegs.

Sunshade Canopy vs Frame Tent vs Inflatable Tent

✅ Find reliable rescue rope systems and detection gear for urban search and rescue (USAR) teams in disaster and emergency response

Sunshade Canopy Scenario Selection

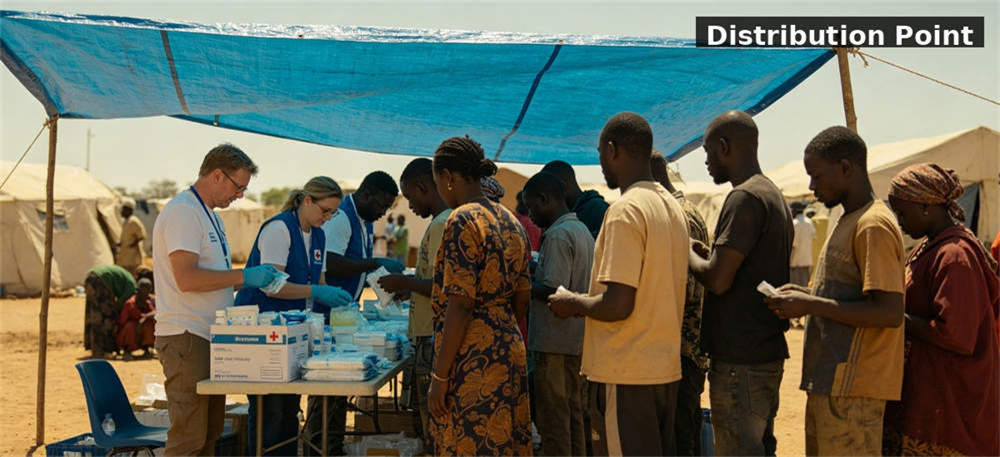

Emergency Distribution Point

Use 3×4m PE woven or 3×4.5m polyester reinforced. Set up over the distribution table with a single-slope orientation (high side facing the sun, low side at the back). Allow 50cm overhang on all sides. Anchor all four corners with pegs or sandbags. For hot climates, add a 3×4m aluminum foil canopy as a second layer 30cm above the first for double-roof cooling.

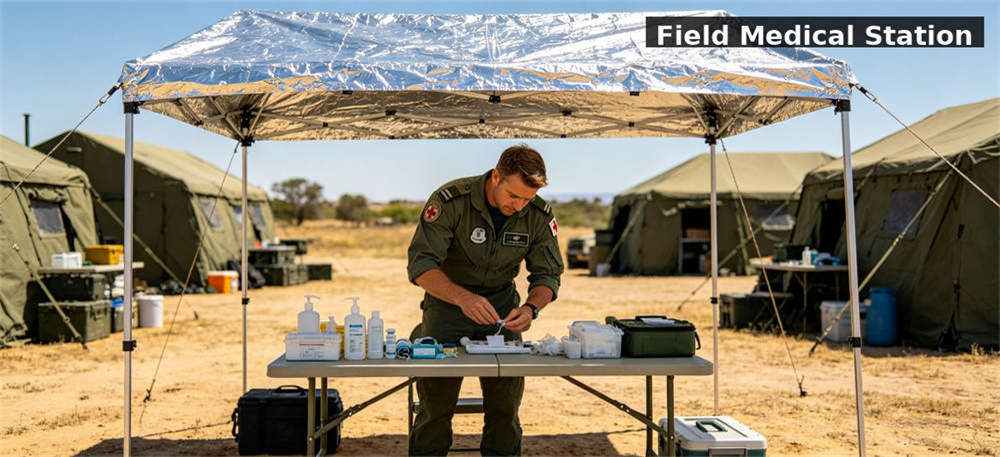

Field First-Aid / Medical Station

Use 3×4m aluminum foil reflective for heat reduction, or 3×3m polyester reinforced for repeated use. Ensure the canopy provides shade over the patient area and the medical supply table. The open sides allow ventilation — important for medical stations. Add side curtains (PE woven sheets) if wind or rain is expected.

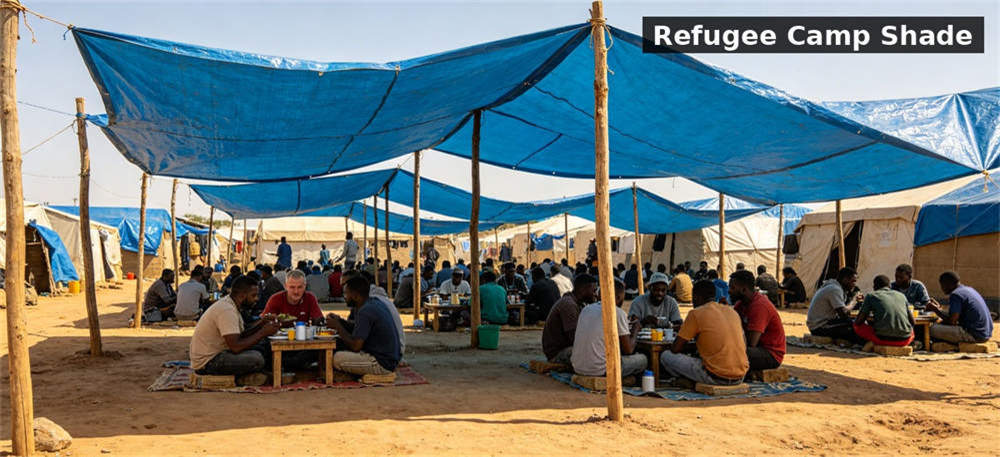

Refugee Camp Common Area

Use 4×6m PE woven canopies for gathering, cooking and dining areas. Multiple canopies can be connected with ropes to create larger shaded spaces. PE woven is the most economical for camp-wide distribution. Reinforce edges with additional rope if left up for more than 2 weeks.

Outdoor Duty / Checkpoint

Use 3×3m polyester reinforced portable set for duty officers and registration staff. The carry bag allows easy relocation between shifts. UPF 50+ protection for all-day exposure. Add a ground sheet under the canopy for muddy conditions.

Vehicle Emergency Kit

Use 2×3m aluminum foil compact canopy. Stores behind a vehicle seat or in a toolbox. Can be strung between two vehicles or tied to a tree for instant shade. The reflective foil also serves as an emergency signal marker.

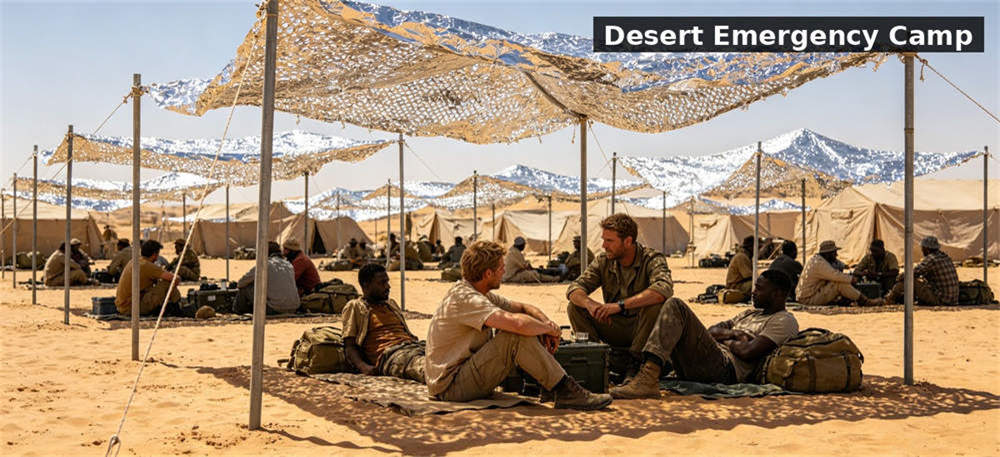

Desert / Extreme Heat Operations

Aluminum foil reflective is mandatory. Use the largest size that fits the space (3×4m). Set up as a double-roof: two canopies stacked with 30cm air gap between them. This can reduce under-canopy temperature by 20°C+ compared to direct sun. Ensure the foil side faces outward.

Three Setup Methods

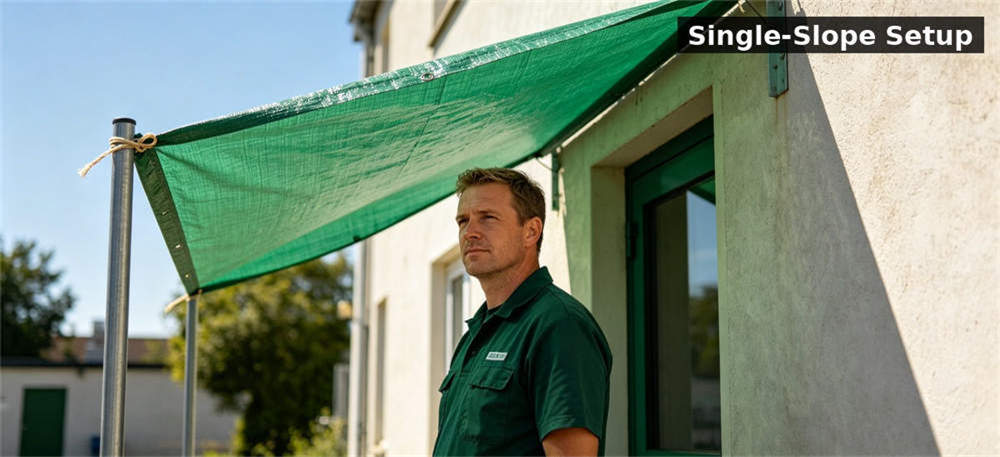

Single-Slope (Lean-To)

One edge tied high (to a pole, building or vehicle), the opposite edge tied low. Creates a sloped roof that sheds rain and provides maximum shade in morning or afternoon sun. Best for wall-side setups and distribution counters. The low side should be at least 2m high for pedestrian clearance.

Double-Slope (Gable / Ridge)

A centre line (ridge rope or pole) supports the middle, with both sides tied down. Creates a tent-like shape with good rain shedding on both sides. Requires a centre support point. Best for freestanding setups away from buildings. The 3×3m and 3×4.5m sizes work well in this configuration.

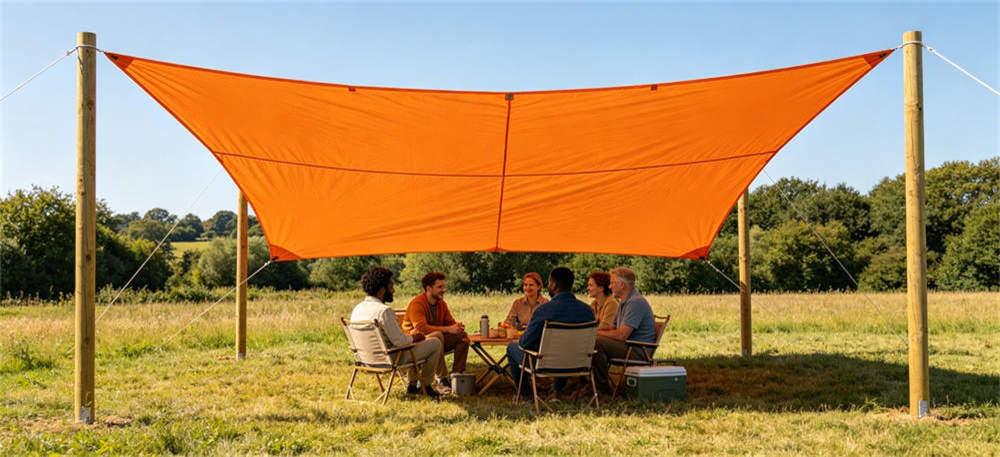

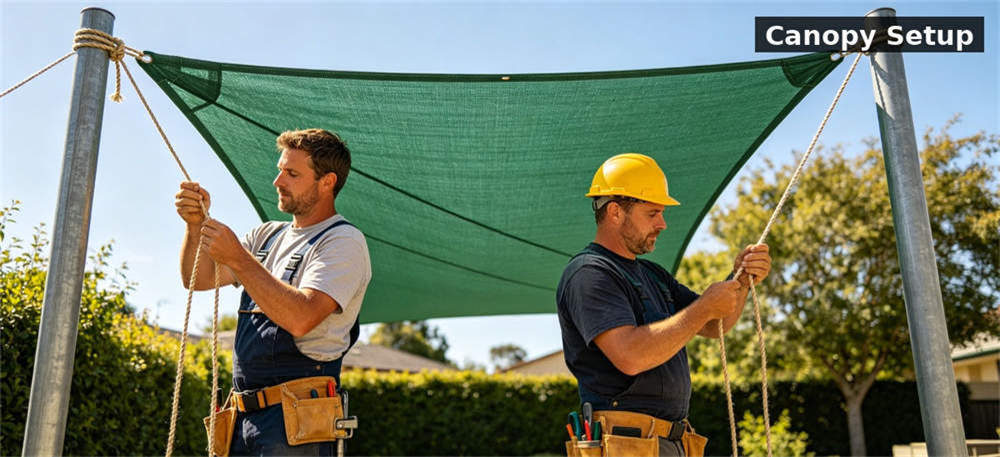

Four-Corner Flat

All four corners tied to poles or structures at equal height. Simplest setup but poorest rain shedding (water pools in the centre if it rains). Best for dry climates where shade is the only goal. Use the polyester reinforced model with webbing loops for this setup. Add a slight slope (5-10°) if rain is possible.

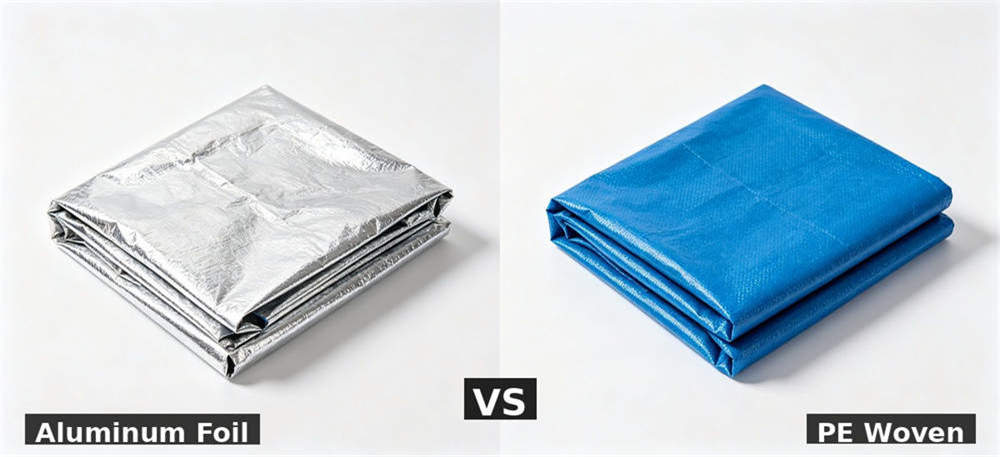

Material Selection Guide

Sample Evaluation Checklist

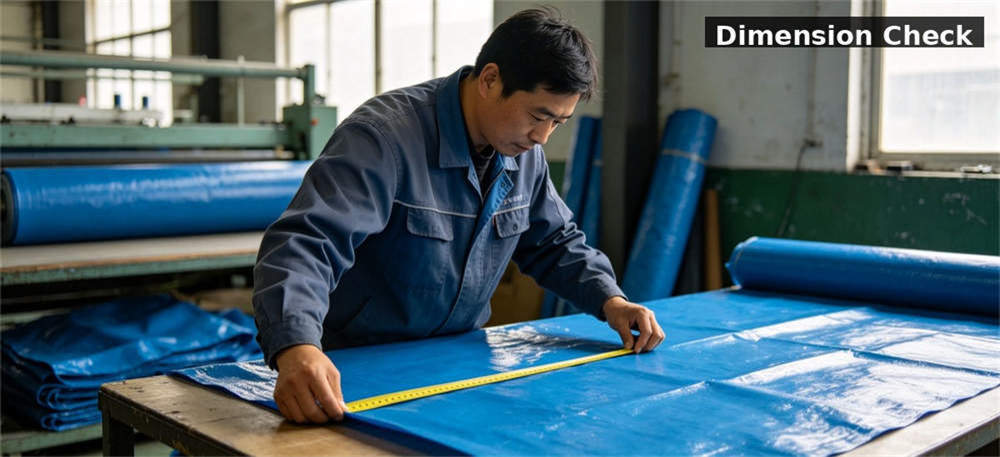

1. Measure dimensions: Confirm finished size (hem to hem), not cut size. Record tolerance (±5% is standard).
2. Check material: Verify fabric weight (gsm), coating type and colour. For aluminum foil, check foil adhesion (rub test — foil should not flake off).
3. Inspect edges: Check hem width (minimum 2cm), stitching density and corner reinforcement. Pull each tie point to test strength.

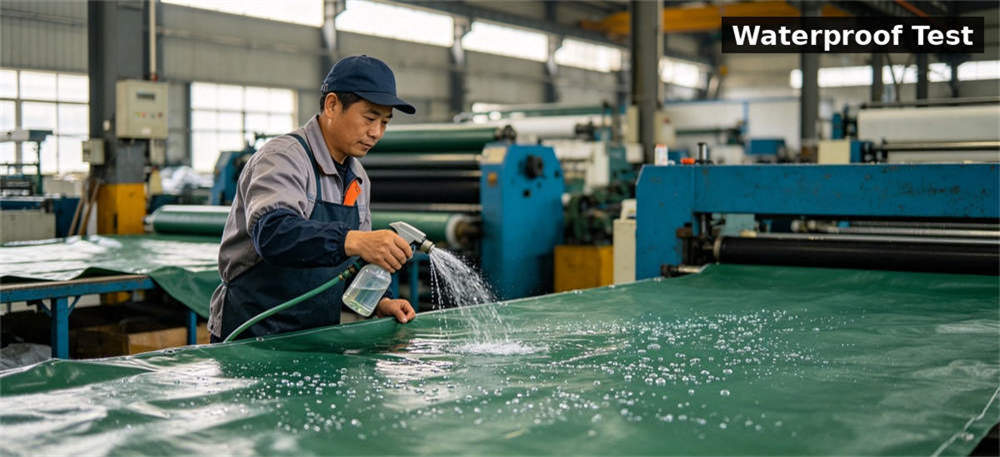

4. Test waterproofing: Spray water on the surface — water should bead and run off, not soak through. Check seams for leakage.
5. Verify UV rating: For polyester, confirm UPF 50+ label or test report. For PE, confirm UV stabiliser additive.
6. Test setup: Actually set up the sample using the included accessories. Check rope length, peg quality and carry bag fit.
7. Repack test: Fold and repack into the carry bag. Confirm it fits without excessive force.

Order Configuration Example: 50 Distribution Point Kit

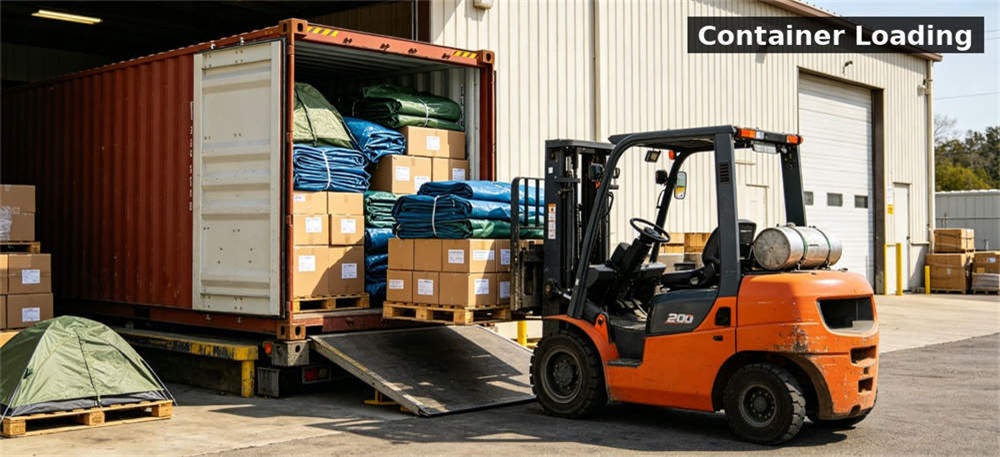

A 20ft container holds approximately 28-33m³. This 50-distribution-point kit fills about 8-10% of one container, leaving room for tents, blankets and other emergency supplies. We can help you mix products to fill the container efficiently.

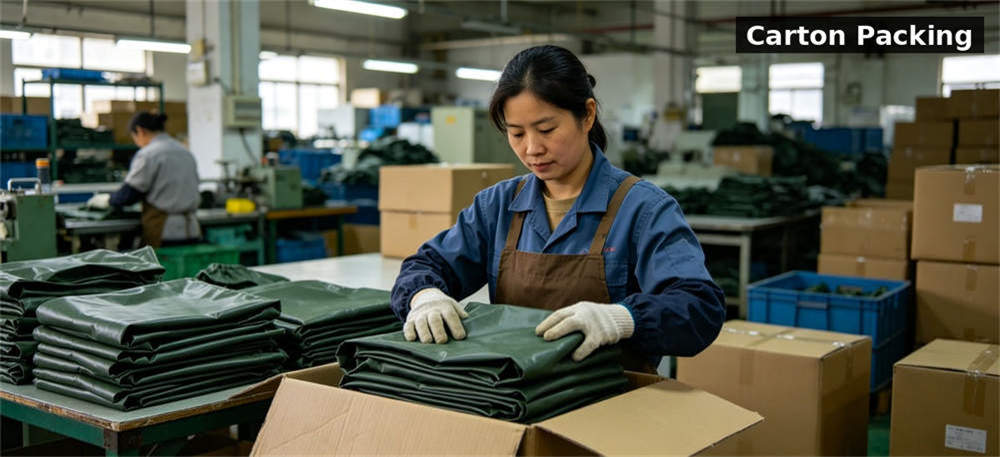

Packing, Labelling and Delivery

Aluminum foil and PE woven canopies: individually folded in PE bags, then 20-50 pieces per export carton. Polyester sets: each in its own carry bag, 10 sets per carton. Cartons labelled with product name, size, quantity, colour and carton number. For institutional orders, we can print project-specific labels and multilingual markings (English, French, Spanish, Arabic).

Standard production lead time is 15-25 working days for stock colours and sizes. Custom colours, logo printing or special sizes add 10-15 working days. For emergency rush orders, we can start production within 72 hours of confirmation. Final delivery dates are confirmed in the contract.

✅ Browse a full portfolio of wholesale emergency supplies and emergency medical kits wholesale for disaster‑relief missions, workplace safety, educational institutions and humanitarian procurement. This aggregation page consolidates comprehensive wholesale medical supplies and emergency medical supplies, supporting B2B bulk orders and project‑based sourcing. Click to view product specs, MOQ details and institutional project quotation options.

Care, Maintenance and Storage

• Before folding: Ensure the canopy is completely dry. Folding a wet canopy causes mildew and material degradation within weeks.
• Cleaning: Wipe with a damp cloth and mild soap. Do not machine wash — the coating will delaminate. Do not use harsh detergents or bleach.
• Aluminum foil care: Avoid scratching the foil surface. Scratched areas lose reflectivity. Store away from sharp objects.
• PE woven care: Can be wiped or hosed clean. Inspect eyelets for rust (if metal) and replace any that corrode.
• Polyester care: Spot clean only. Re-proof with UV-resistant spray if used intensively for more than 6 months.
• Storage: Store in a cool, dry place away from direct sunlight. Keep folded in the carry bag or PE bag. Do not place heavy items on top.
• Inspection: Check before each use for tears, delamination, loose stitching and damaged eyelets. Repair small tears with repair tape; retire if damage exceeds 5cm.
• Lifespan: Aluminum foil: 1-2 years continuous outdoor use. PE woven: 2-3 years. Polyester: 3-5 years. Storage life (unopened): 5+ years.

Certifications and Testing

We can help arrange third-party test reports based on your project requirements. Commonly requested tests include:

• UV protection: UPF rating (AS/NZS 4399 or equivalent), UV transmittance test
• Waterproof: Hydrostatic head test (mm water column)
• Tensile strength: Fabric tear and tensile strength (ISO 13934/13937)
• Flame retardancy: Optional — CPAI-84 or EN 13501-1 (for polyester models)
• Aluminum foil adhesion: Scratch test, reflectivity measurement

Batch traceability is available: each production lot records material supplier, coating batch, production date and test results. For large tenders, we can provide a batch document pack with each shipment.

Key Sunshade Procurement Points

1. Confirm finished size, not cut size: A "3×3m cut size" may finish at 2.85×2.85m after hemming. Always specify finished dimensions.
2. Match material to climate: Aluminum foil for extreme heat, PE for general use, polyester for repeated deployment.
3. Check tie point quantity and strength: 4 corners is minimum; 6-8 points allow more setup options. Pull-test each point.
4. Confirm accessories included: Ropes and pegs are optional on PE and foil models; polyester sets include them. State this clearly in the order.
5. Specify colour for visibility: Orange for emergency visibility, green/silver for desert camouflage, blue/white for general use.
6. Reinforced edges for long-term use: Rope-hemmed edges (PE) or webbing-reinforced corners (polyester) prevent tearing under tension.
7. Plan for spare parts: Order 5-10% extra ropes and pegs — these are the first items lost in the field.
8. Consider double-roof for heat: In climates above 35°C, two layered canopies with an air gap significantly reduce under-canopy temperature.

Emergency Sunshade Canopy FAQ

A sunshade canopy is an open tarp that provides overhead shade only — no walls, no floor, no freestanding frame. A tent is fully enclosed with walls, floor and a frame structure. Canopies are lighter (0.5-3kg vs 15-25kg), cheaper and faster to set up, but offer no privacy or full weather protection. Use a canopy for temporary shade; use a tent for accommodation or enclosed workspaces.

A 3×3m canopy covers a standard 4-person table (1.2×0.8m) with 50-80cm overhang on all sides. For a 6-8 person table, use 3×4m or 3×4.5m. Always add 50cm overhang beyond the area you want shaded — the shadow moves with the sun.

Yes, but only for light rain. The foil laminate is waterproof, but the lightweight material is not designed for heavy downpours. Set it up with a slope (single-slope configuration) so water runs off, not pools. For heavy rain, use the PE woven or polyester model which are more durable.

Two people can set up a 3×3m or 3×4m canopy in 2-5 minutes if support points (poles, trees, buildings) are available. A 4×6m canopy needs 3-4 people and 4-6 support points. The polyester reinforced set with poles can be set up by two people.

Poles are not included as standard. Aluminum foil and PE woven canopies are designed to use existing support points (trees, buildings, vehicles) or separately purchased poles. The polyester reinforced set includes ropes and pegs but not poles. We can supply telescopic steel poles (2m or 2.5m) as an optional accessory.

UPF (Ultraviolet Protection Factor) 50+ means the fabric blocks 98% of UV radiation. Only 1/50th (2%) of UV passes through. This is the highest standard rating for sun protective fabrics. Our polyester models are UPF 50+; PE woven models block 85-95% of UV; aluminum foil reflects 90%+.

Continuous outdoor use: aluminum foil 1-2 years, PE woven 2-3 years, polyester 3-5 years. Lifespan depends on UV exposure, wind, and how well it is secured. Stored unopened in a dry warehouse, all types last 5+ years. Folding and unfolding causes the most wear — minimise unnecessary handling.

Yes. Standard colours: orange, green, blue, white, silver, black. Custom colours require a production run and add 10-15 working days. Logo printing (silk-screen or heat-transfer) is available on PE woven and polyester models. Provide artwork in vector format (AI or EPS).

For small tears (under 5cm): clean and dry the area, apply self-adhesive repair tape (available from outdoor suppliers) on both sides. For larger tears: the canopy should be retired or sent for professional repair. Always carry 1-2 spare canopies for critical operations.

Cut size is the fabric dimension before hemming. Finished size is after hemming and edge reinforcement. A 3×3m cut size typically finishes at 2.85-2.95m. Always specify "finished size" in your order to avoid receiving a smaller canopy than expected. Tolerance is typically ±5%.

Yes. Multiple canopies can be tied together along edges using ropes or carabiners. Leave a 10-20cm gap between canopies for rain runoff (overlapping causes water to seep through). PE woven canopies with eyelets every 1m are the easiest to connect.

Use all available tie points. Tie to ground pegs, sandbags, heavy equipment or existing structures. Add guy lines from the canopy edges to ground anchors at 45° angles. In winds above 20km/h (Beaufort 5), take the canopy down to prevent damage. The polyester reinforced model with webbing loops holds best in wind.

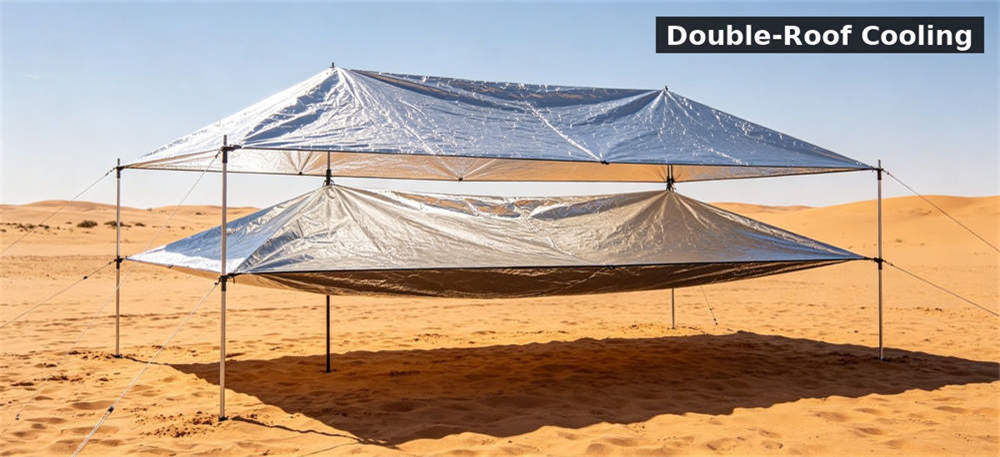

Set up two canopies one above the other with a 20-30cm air gap between them. The top canopy absorbs/reflets heat, the air gap dissipates it, and the bottom canopy provides shade. This can reduce under-canopy temperature by an additional 5-10°C compared to a single canopy. Most effective with aluminum foil top layer.

For individual distribution: each canopy in its own PE bag or carry bag, labelled with size and setup instructions. For camp-wide distribution: pack by size in cartons, with 1-2 setup instruction sheets per carton. Include spare ropes and pegs (5-10% extra) in a separate carton. We can provide multilingual setup instruction sheets.

✅ View details of our Factory Supply Reliable Reflective Refugee Rescue Sunshade Canopy, source durable emergency sunshade canopies and disaster relief shade shelters with reflective surface for refugee camp and field emergency scenarios, available for bulk procurement.

Get a Sunshade Canopy Proposal

Tell us your scenario (distribution point, medical station, camp, vehicle kit), expected temperatures, number of people to shade, and available support points. We will recommend the right material type, size and quantity, calculate packing and container loading, and provide a complete specification sheet.

We can help arrange third-party test reports based on your project requirements. Send your requirements to info@yrftextile.com or message us on WhatsApp for a quick response.

Ready to specify your sunshade canopy order? Send your scenario, size and quantity, and we will return a matched proposal with material recommendations and delivery timeline.
